TV Characteristics Intelligent Tester

Product Introduction：

　　The TV characteristic intelligent tester adopts an improved power circuit and microcontroller peripheral circuit from the original imported aluminum foil conversion power supply, with a fully computerized software intelligent control mode, to achieve automatic detection of the comprehensive electrical performance such as the TV characteristics of aluminum anode foil and electrolyte flash voltage. No manual intervention is required, and the software has the characteristics of simple, intuitive, and fast operation. The product has received unanimous praise from customers!

Product Features Main technical indicators

1. Automatic testing: The entire testing process does not require manual intervention, and there is an automatic sound prompt at the end of the test.

2. Can test TV withstand voltage, TV withstand voltage+LC, LC testing, electrolyte testing, pin mode testing (customized), etc.

3. Full computer software intelligent control mode, realizing automatic detection of comprehensive electrical properties such as TV characteristics of aluminum anode foil and electrolyte flash voltage.

4. Adopting imported sampling control chips from abroad, the sampling speed is fast and the accuracy is high.

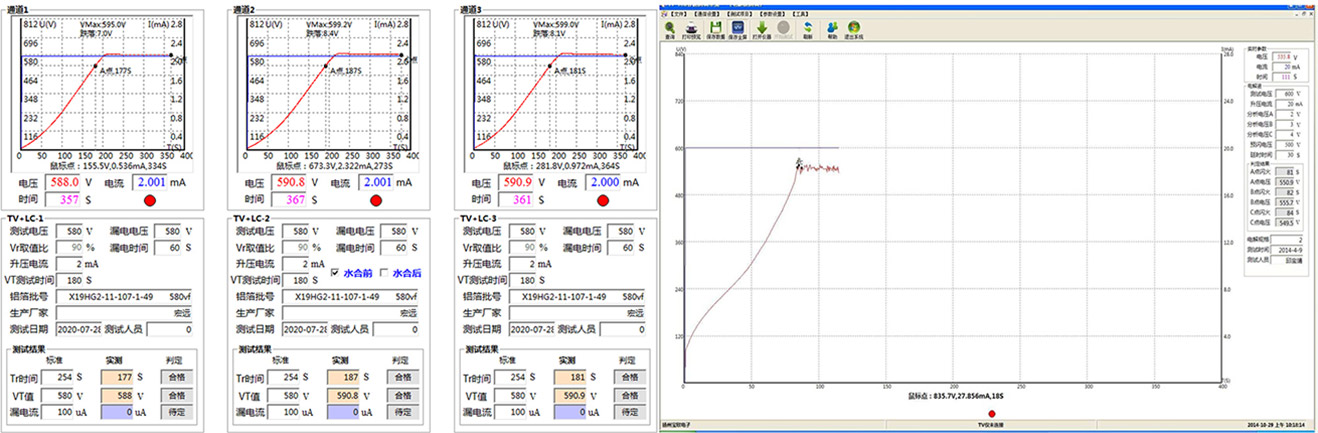

5. The data is displayed using curves, and the voltage and current are visually displayed to show the withstand voltage and boost situation.

6. Test data can be saved, queried, printed, and so on. Data can be uploaded to the enterprise database according to customer needs, making it more convenient to read.

7. We can customize various data reports according to customer requirements for easy archiving and reference.

8. It can achieve simultaneous comparative testing of multiple channels (2-6 channels), with higher testing efficiency and faster speed.

9. CNAS certification report can be provided.

TV characteristic tester 01M/10M High precision linear DC power supply

BACK

Recommend

TV characteristic tester 01M/10M

TV Characteristics Intelligent Tester

High precision linear DC power supply

High precision switch DC power supply

High power thyristor rectifier power supply

High voltage DC power supply

Capacitor aging power supply

Aluminum foil capacitor power supply

Capacitor pulse DC power supply (surge)

AC stabilized voltage and current power supply

Capacitor Ripple Durability Test Power Supply

Ripple Durability Test Power Supply for Thin Film Capacitors

Multi channel intelligent ripple durability testing power supply

Intelligent Ripple Power Supply Testing System (Integrated Machine)

Intelligent voltage withstand testing system for capacitors (explosion-proof testing)

Capacitor Charge and Discharge Cycle Testing System

Capacitor Aging Testing System Integrated Machine

Bidirectional DC power supply

Product main technical indicators
I. Power supply section
1. Output voltage value	1 ~ 1000V can be set continuously (computer setting) constant pressure accuracy better than 0.1%
2. Output constant current value	0.1 ~ 20mA can be set continuously (computer setting) constant current accuracy better than 0.1%
3. Source effect	≤0.1%
4. Display resolution	Voltage: 0.1V current: 1uA time: 1S
5. Timer range	1. Aluminum foil TV characteristic mode: Automatic and manual setting: Tr (boost time) +180 seconds (manual setting 0-9999S) 2. Leakage current mode: Artificial setting: 0-9999S 3. Electrolyte flash voltage mode: Flash fire A point + delay time 0-9999S (manually set)
6. Short circuit protection	Allow long-term short circuit under any circumstances
7. Working methods	Long-term continuous operation at full load
8. Voltage, current and time display mode	Computer software display
9. Whole machine voltage meter error	≤±0.1%± 1 character (measurement range 1%~100% rated value)
10. Total current meter error	≤±0.1%± 1 character (measurement range 1%~100% rated value)
11. Timing errors	≤0.01%
12. Environmental conditions	Temperature-20℃~+40℃, humidity ≤80%
13. Input voltage	220V±10% 50Hz±10%
II. Software component
1. Software parameters can be set	1. Aluminum foil TV characteristic mode: Vf value, boost current, delay time, etc 2. Leakage current mode Vf value, boost current, delay time, etc 3. Flash voltage Electrolysis specifications, charging current, pre-flash voltage, analysis voltage, and so on
2. Output graphics	The computer displays a single or multiple voltage, current and time curves
3. Sampling frequency	3 times/S
4. Database functions	Supports ACCESS database, which saves the test results of one test data and every 1 second to the user-specified ACCESS database. The test results can be exported as EXCEL report for convenient query. Each test waveform can be saved directly as an image.
5. Query, display, print	Users can call in and display any saved test data through the software. The tested curves can be compared intuitively. The tested curves can be printed: when printing, you can choose single or multiple channels, no matter how many channels you choose, they can be properly printed on A4 paper.
6. Software interface	Software Configuration (User-adjustable). Default settings: White background with black coordinate axes and thin dashed scale lines. Users can customize the color of test result curves and selectively hide voltage/current curves for enhanced data organization and comparison. The image processing during data saving, query recording, and real-time testing maintains identical functionality. Printing specifications: A4 paper with white background, black coordinate axes, thin dashed scale lines, and black test result curves. The software is full-screen operation. The software can be rewritten as required, and the data can also be uploaded to the database.
7. Software usage environment	Display resolution: 1024*768 CPU：Pentium 500（P3） Memory: 64M (more than 256M) XP，Vista,win7，Win10
8. Shipping accessories	Enterprise standard (fuse, wear parts, etc.)
