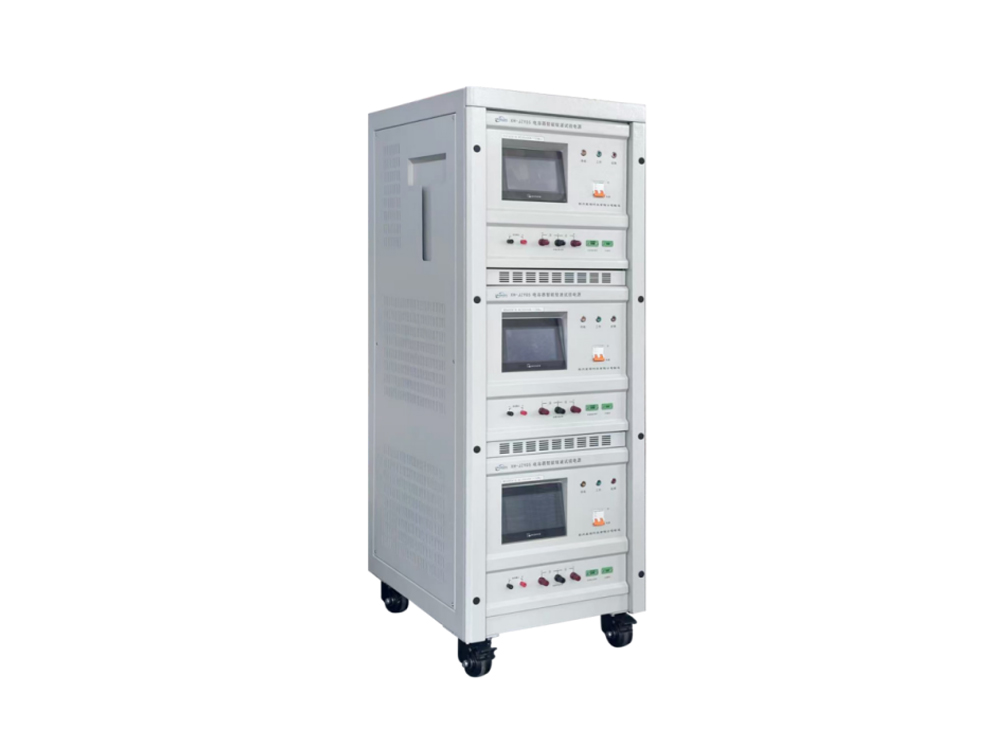

Capacitor Ripple Durability Test Power Supply

Product Introduction：

　　The XH-JZY series capacitor ripple durability testing power supply is a specialized testing equipment for capacitor manufacturers and users, used for ripple current durability life testing of capacitors. It can simulate the actual working conditions of capacitors to determine the service life value of a set of tested capacitors, providing accurate parameters for product reliability design for capacitor manufacturers, and also providing users who use capacitors with the real quality basis of the product. This series of products is designed with integrated AC/DC power supply, automatic stacking, optional touch screen, and multiple upper computer interface options, making it convenient for customers to connect to their MES system in the future. The product has received unanimous praise from customers!

Product Features Main technical indicators

1. Automatic stacking of AC and DC, integrated design, no need for wiring.

2. DC bias voltage of 600V/800V/1000V can be selected or customized according to requirements, while AC voltage and current can be customized according to customer requirements.

3. Low frequency fixed frequency 120Hz or 40-1000Hz frequency continuously adjustable; High frequency fixed frequency 100kHz or 10-100kHz or 10-200kHz frequency continuously adjustable.

4. The accuracy of DC and AC is 0.1%, the display accuracy of DC is 0.1V1mA, and the display accuracy of AC can reach 0.01V0.01A.

5. Ripple current effective value display, ripple voltage peak value display, no conversion required.

6. There are two ways to set voltage and current values: touch screen or potentiometer, which are easy and convenient to operate.

7. The timing range can be set from 1 to 9999 hours. When the test time ends or stops abnormally, an audible and visual alarm will sound, and the storage time and fault situation will be automatically recorded.

8. It has relevant protection functions such as overvoltage, overcurrent, short circuit, and over temperature protection.

9. Optional series or parallel fixtures such as 10, 20, 22, etc.

10. Optional fixtures such as linear and L-shaped can be used with different capacitor specifications.

11. The DC bias voltage can be automatically adjusted according to the capacitance withstand voltage, with a fixed peak voltage Vpeak=Vdc+Vac peak.

12. Multiple remote monitoring functions can be optionally selected to achieve remote operation and real-time monitoring of the power supply's working status, export test data, and interface with the user's MES system.

13. This device can meet users' needs for high power output of ripple voltage and current, as well as pulse aging.

14. Customized functions can be provided according to customer requirements.

15. CNAS certification report can be provided.

16. DRX05/06 intelligent MES system that can interface with users.

XH-JZY01 Product main technical indicators
IO	Input: AC single phase 220V±10% 50Hz±10% Output: AC/DC superimposed output, drawn from three terminals, Maximum output DC voltage and current value: same product specification Maximum voltage and current value of single-way output AC: same product specification
(1) DC section
1. Voltage stabilization accuracy	Source effect: less than 0.1% of the rated value (the rate of change of output voltage caused only by a change in input source voltage ±10%) Time drift: ≤0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.04% rated value /℃ (only due to the rate of change of output voltage caused by the change of ambient temperature within the operating temperature range of the power supply) Load effect: ≤0.2% of the rated value (only the rate of change of output voltage caused by the change of output current from zero to the rated value)
2. Ripple (r.m.s)	≤0.1% +10mV (measured at 80%~100% rated output)
3. Output voltage adjustment range	Approximately 0 to the rated voltage value can be continuously adjusted
4. Automatic timing range	1~9999 hours
5. Output voltage setting	Ten-ohm potentiometer
6. Protection modalities	Overvoltage and overcurrent automatic protection
7. Short circuit alarm	Allow short circuit and sound alarm
8. Working methods	Long-term continuous operation at full load
9. Output voltage and current display mode	LED digital tube display
10. Output voltage and current display resolution	0.1V；1mA
11. Error of whole electromagnet voltage and current meter	≤±1%± 1 character (measurement range 1%~100% rated value)
12. Overall time schedule error	≤±0.01%
(2) Communication section
1. Output voltage adjustment range	1%~Rated voltage value can be continuously adjusted
2. Output current adjustment range	1%~Rated current value can be continuously adjusted
3. Output waveform	Sine wave (distortion ≤5%, measured at full power output)
4. Output frequency	50 or 120Hz output (frequency error ≤±1%)
5. Output voltage and current display mode	LED digital tube display
6. Display resolution	voltage	0.1V	≥20V
		0.01V	≤19.99V
	current	0.1A	≥200A
		0.01A	≤199.9A
7. Output voltage and current setting method	Ten-ohm potentiometer
8. Error of whole machine voltage and current meter	≤±1.5%± 2 characters (measuring range 10%~100% rated value)
9. Protection modalities	Overvoltage and overcurrent automatic protection
10. Working methods	Long-term continuous operation at full load
11. Power supply load characteristics	Resistive load
12. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
13. Shipping accessories	Enterprise standard (fuse, wear parts, etc.)
14. Output terminal placement	Front and rear panels

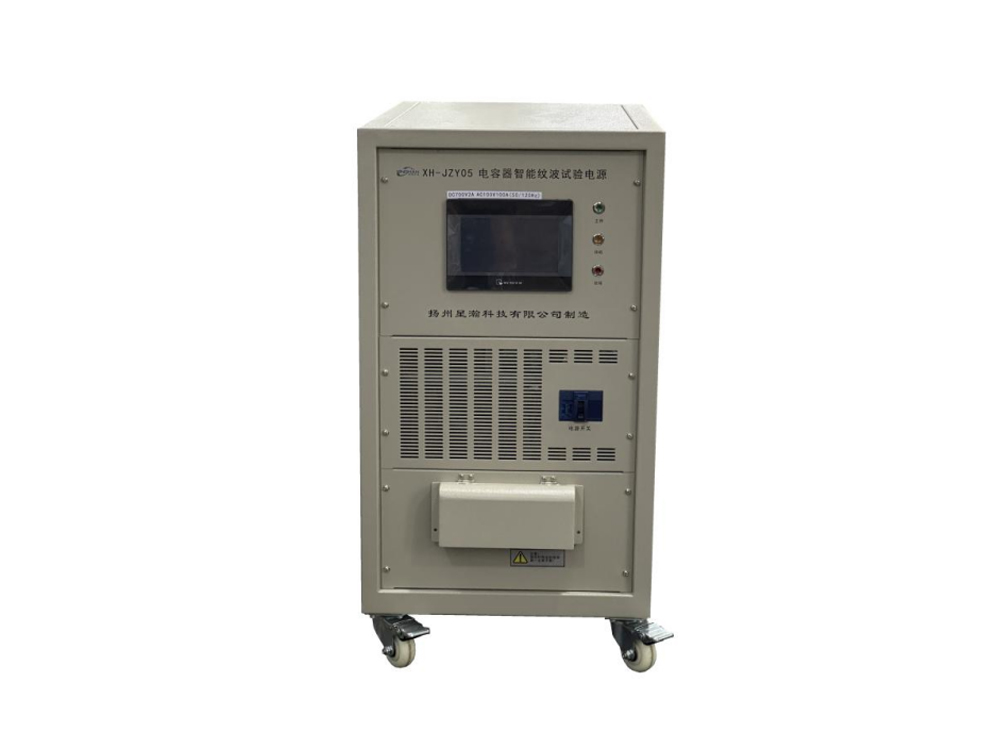

XH-JZY05 Product main technical indicators
IO	Input: AC single phase 220V±10% 50Hz±10% Output: AC/DC superimposed output, drawn from three terminals Maximum output DC voltage and current value: same product specification Maximum voltage and current value of single-way output AC: same product specification
(1) DC section
1. Voltage stabilization accuracy	Source effect: less than 0.1% of the rated value (the rate of change of output voltage caused only by a change of ±10% in the input source voltage) Time drift: ≤0.2% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.03% rated value /℃ (only due to the rate of change of output voltage caused by the change of ambient temperature within the operating temperature range of the power supply) Load effect: ≤0.1% of the rated value (only the rate of change of output voltage caused by the change of output current from zero to the rated value)
2. Ripple (r.m.s)	≤0.1% +10mV (measured at 80%~100% rated output)
3. Output voltage adjustment range	Approximately 0 to the rated voltage value can be continuously adjusted
4. Automatic timing range	1~9999 hours

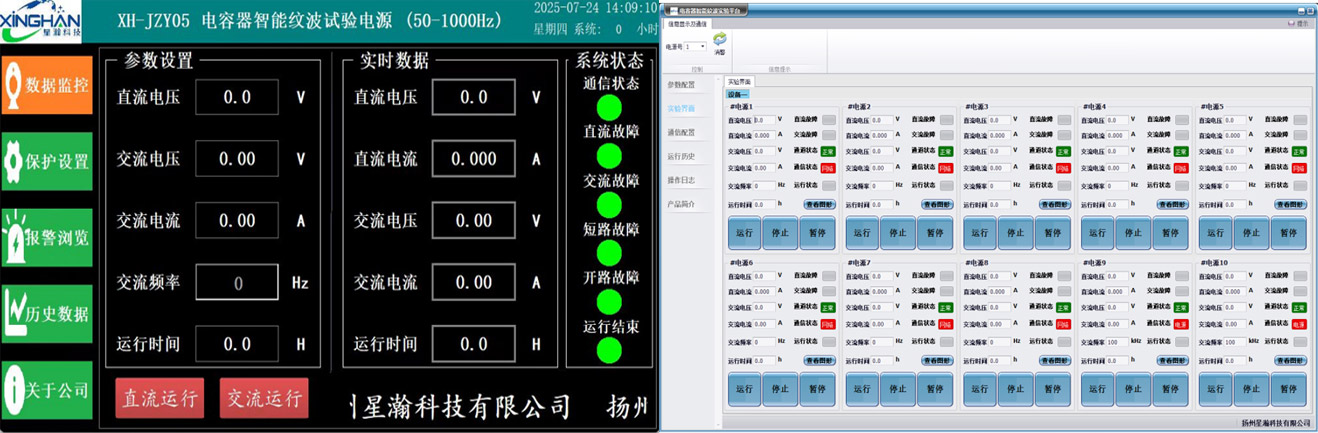

5. Output voltage setting	Touch screen Settings
6. Protection modalities	Overvoltage and overcurrent automatic protection
7. Working methods	Long-term continuous operation at full load
8. Output voltage and current display mode	Touch screen display
9. Output voltage and current display resolution	0.1V；1mA
10. Error of whole machine voltage and current meter	≤±1%± 1 character (measurement range 1%~100% rated value)
11. Overall time schedule error	≤±0.01%
(2) Communication section
1. Output voltage adjustment range	1%~Rated voltage value can be continuously adjusted
2. Output current adjustment range	1%~Rated current value can be continuously adjusted
3. Output waveform	Sine wave (distortion ≤5%, measured at full power output)
4. Output frequency	50,120 or 40~1000Hz (frequency error ≤±1%)
5. Output voltage and current display mode	Touch screen display
6. Display resolution	voltage	0.1V	≥20V
		0.01V	≤19.99V
	current	0.1A	≥200A
		0.01A	≤199.9A
7. Output voltage and current setting method	Touch screen Settings
8. Error of whole machine voltage and current meter	≤±1.5%± 2 characters (measuring range 10%~100% rated value)
9. Protection modalities	Overvoltage and overcurrent automatic protection
10. Working methods	Long-term continuous operation at full load
11. Power supply load characteristics	Resistive load
12. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
13. Shipping accessories	Enterprise standard (fuse, wear parts, etc.)
14. Output terminal placement	Front and rear panels

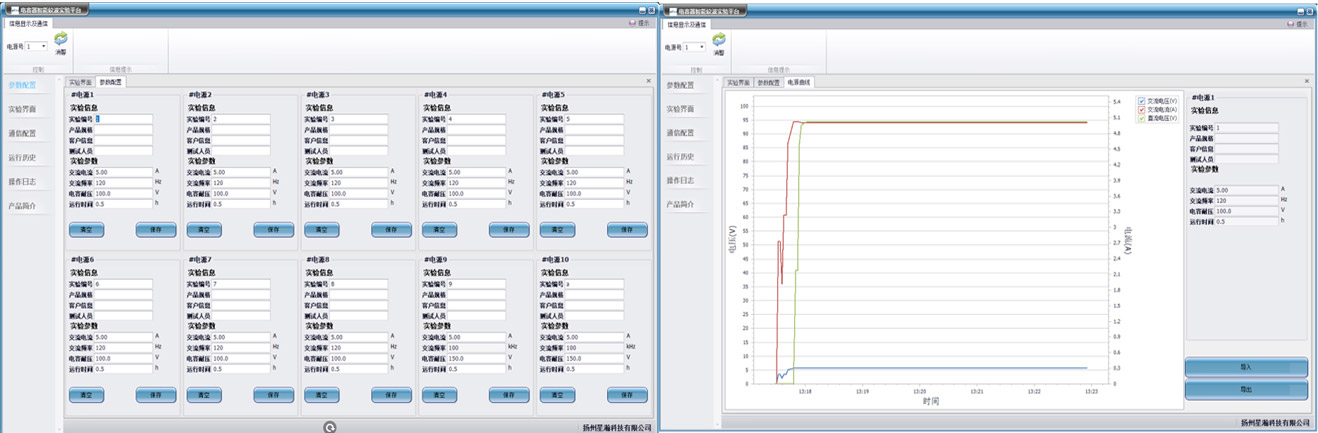

15. Intelligent monitoring	With RS485 interface, the supplier provides a full set of software, users can control and monitor the DC and AC voltage and current value through their own computer, the panel has USB interface
16. Optional functions	Connect MES system
XH-JZY02 Product main technical indicators
IO	Input: AC single phase 220V±10% 50Hz±10% Output: AC/DC superimposed output, drawn from three terminals Maximum output DC voltage and current value: same product specification Maximum voltage and current value of single-way output AC: same product specification
(1) DC section
1. Voltage stabilization accuracy	Source effect: less than 0.1% of the rated value (the rate of change of output voltage caused only by a change of ±10% in the input source voltage) Time drift: ≤0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.04% rated value /℃ (only due to the rate of change of output voltage caused by ambient temperature changes within the operating temperature range of the power supply) Load effect: ≤0.2% of the rated value (only the rate of change of output voltage caused by the change of output current from zero to the rated value)
2. Ripple (r.m.s)	≤0.1% +10mV (measured at 80%~100% rated output)
3. Output voltage adjustment range	Approximately 0 to the rated voltage value can be continuously adjusted
4. Automatic timing range	1~9999 hours
5. Output voltage setting	Ten-ohm potentiometer
6. Protection modalities	Overvoltage and overcurrent automatic protection
7. Short circuit alarm	Allow short circuit and sound alarm
8. Working methods	Long-term continuous operation at full load
9. Output voltage and current display mode	LED digital tube display
10. Output voltage and current display resolution	0.1V；1mA
11. Error of whole electromagnet voltage and current meter	≤±1%± 1 character (measurement range 1%~100% rated value)
12. Overall time schedule error	≤±0.01%
(2) Communication section
1. Output voltage adjustment range	1%~Rated voltage value can be continuously adjusted
2. Output current adjustment range	1%~Rated current value can be continuously adjusted
3. Output waveform	sinusoidal wave
4. Output frequency	100kHz fixed frequency output (frequency error ≤±2%)
5. Output voltage and current display mode	LED digital tube display
6. Display resolution	voltage	0.1V	≥20V
		0.01V	≤19.99V
	current	0.1A	≥200A
		0.01A	≤199.9A
7. Output voltage and current setting method	Ten-watt potentiometer
8. Error of whole machine voltage and current meter	≤±1.5%± 1 character (measurement range 10%~100% rated value)
9. Protection modalities	Overvoltage and overcurrent automatic protection
10. Working methods	Long-term continuous operation at full load
11. Power supply load characteristics	Resistive load
12. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
13. Shipping accessories	Enterprise standard (fuse, wear parts, etc.)
14. Output terminal placement	Front and rear panels

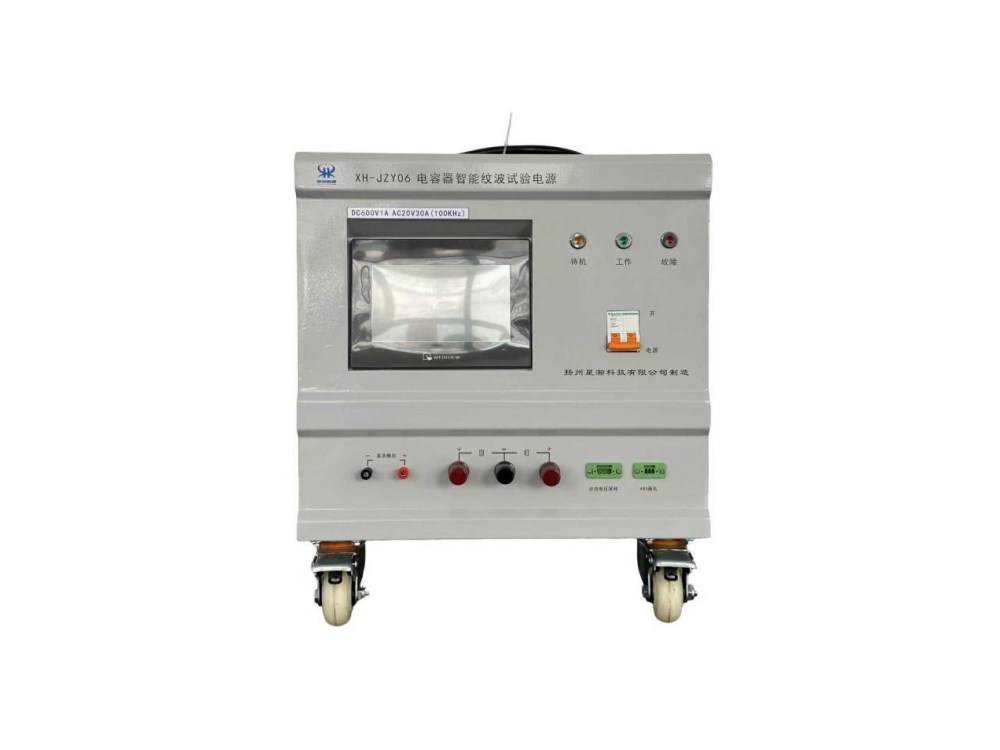

XH-JZY06 Product main technical indicators
IO	Input: AC single phase 220V±10% 50Hz±10% Output: AC/DC superimposed output, drawn from three terminals Maximum output DC voltage and current value: same product specification Maximum voltage and current value of single-way output AC: same product specification
(1) DC section
1. Voltage stabilization accuracy	Source effect: less than 0.1% of the rated value (the rate of change of output voltage caused only by a change of ±10% in the input source voltage) Time drift: ≤ 0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.04% rated value /℃ (only due to the rate of change of output voltage caused by ambient temperature changes within the operating temperature range of the power supply) Load effect: ≤0.2% of the rated value (only the rate of change of output voltage caused by the change of output current from zero to the rated value)
2. Ripple (r.m.s)	≤0.1% +10mV (measured at 80%~100% rated output)
3. Output voltage adjustment range	Approximately 0 to the rated voltage value can be continuously adjusted
4. Automatic timing range	1~9999 hours
5. Output voltage setting	Touch screen Settings
6. Protection modalities	Overvoltage and overcurrent automatic protection
7. Short circuit alarm	Allow short circuit and sound alarm
8. Working methods	Long-term continuous operation at full load
9. Output voltage and current display mode	Touch screen display
10. Output voltage and current display resolution	0.1V；1mA
11. Error of whole electromagnet voltage and current meter	≤±1%± 1 character (measurement range 1%~100% rated value)
12. Overall time schedule error	≤±0.01%
(2) Communication section
1. Output voltage adjustment range	1%~Rated voltage value can be continuously adjusted
2. Output current adjustment range	1%~Rated current value can be continuously adjusted
3. Output waveform	sinusoidal wave
4. Output frequency	100k fixed frequency or 10k~100kHz or 10k~200kHz adjustable output (frequency error ≤±2%)
5. Output voltage and current display mode	Touch screen display
6. Display resolution	voltage	0.1V	≥20V
		0.01V	≤19.99V
	current	0.1A	≥200A
		0.01A	≤199.9A
7. Output voltage and current setting method	Touch screen Settings
8. Error of whole machine voltage and current meter	≤±1.5%± 1 character (measurement range 10%~100% rated value)
9. Protection modalities	Overvoltage and overcurrent automatic protection
10. Working methods	Long-term continuous operation at full load
11. Power supply load characteristics	Resistive load
12. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
13. Shipping accessories	Enterprise standard (fuse, wear parts, etc.)
14. Output terminal placement	Front and rear panels
15. Intelligent monitoring	With RS485 interface, the supplier provides a full set of software, users can control and monitor the DC and AC voltage and current value through their own computer, the panel has USB interface
16. Optional functions	Connect MES system
