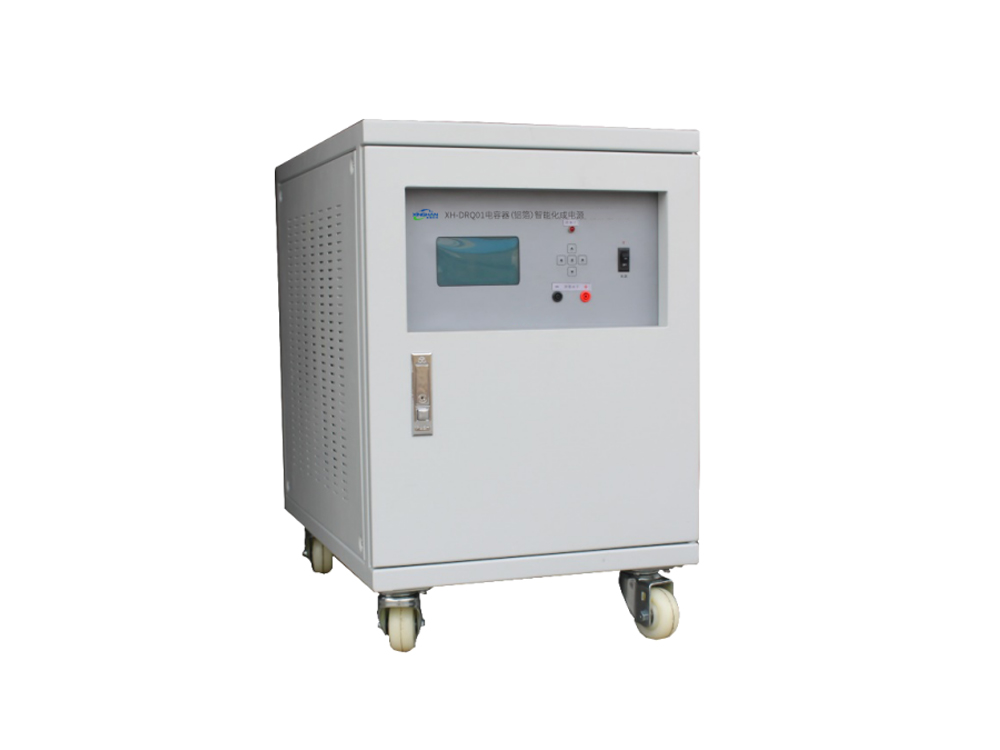

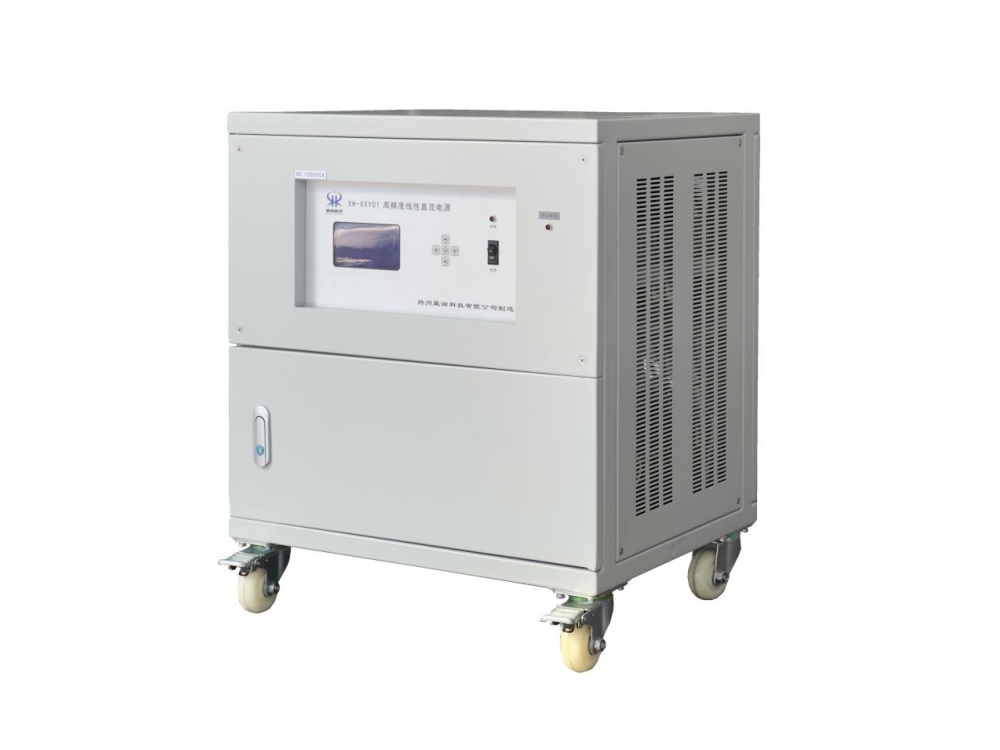

Aluminum foil capacitor power supply

Product Introduction：

　　XH-DRX01 capacitor aluminum foil conversion power supply is a specialized equipment for capacitor aluminum foil manufacturers to conduct phased testing experiments on capacitor aluminum foil conversion (extremely low voltage foil, low voltage foil, medium high voltage foil, high voltage foil). Its power supply uses high-precision linear DC power supply to ensure continuous and stable output at full load for a long time, and is equipped with dedicated software settings, startup timing, constant voltage timing, constant current timing, shutdown discharge and other functions. It allows short-circuit operation in any working state and is one of the indispensable testing equipment for providing high-quality aluminum foil screening for the capacitor industry. The product has received unanimous praise from customers!

Product Features Main technical indicators

1. Constant current mode charging makes electrolytic capacitor products more stable and test data more accurate.

2. Adopting multi-level linear voltage regulation technology and precise control circuits to ensure long-term stability of power output.

3. Equipped with a comprehensive protection circuit, it allows for long-term short circuit or short circuit startup in any working state.

4. Equipped with computer interfaces such as RS232 or RS485, it meets the needs of customers' upper computer operations.

5. Adopting a 7-inch or 10 inch touch screen display and settings, the operation is simpler, more convenient, and more intuitive.

6. Multiple optional functions (shutdown discharge, pulse function, startup timing, constant voltage timing, constant current timing, analog control, etc.).

7. We can customize functions according to customer requirements.

8. CNAS certification report can be provided.

Product main technical indicators
1. Input and output	Input: AC single phase 220V±10% 50Hz±10% Output: DC voltage and current stabilized Output maximum voltage and current value: same product specification Output polarity: according to customer needs
2. Voltage stabilization accuracy	Source effect: less than 0.1% of the rated value (the rate of change of output voltage caused only by a 10% variation ±of the input source voltage) Time drift: ≤ 0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.04% rated value /℃ (only due to the rate of change of output voltage caused by ambient temperature changes within the operating temperature range of the power supply) Load effect: ≤0.3% of the rated value (only the rate of change of output voltage caused by the change of output current from zero to the rated value) Note: The above index is measured within the range of output power ≤80% of the rated voltage
3. Steady flow accuracy	Source effect: ≤0.1% of the rated value (only due to the change in output current rate caused by the change in input source voltage-5% to + 10%) Time drift: less than 1% of the rated value (only due to the change rate of output current caused by the continuous operation time of the power supply is more than 8 hours) Warm drift: ≤ 0.04% rated value /℃ (only due to the change rate of output current caused by ambient temperature changes within the operating temperature range of the power supply) Load effect: ≤ 0.3% of the rated value (the rate of change of output current only due to the change of output current from zero to the rated value)
4. Ripple (r.m.s)	When the positive high voltage is applied and the negative grounding is applied: ≤0.2% +10mV (measured at 80%~100% rated output)
5. Output voltage adjustment range	1%~Rated voltage value can be continuously adjusted
6. Output current adjustment range	1%~Rated current value can be continuously adjusted
7. Output voltage and current setting	Key settings
8. Protection modalities	Overvoltage and overcurrent automatically cut off output
9. Short circuit protection	Allow short circuits
10. Working methods	Long-term continuous operation at full load
11, output voltage, current display mode	LCD liquid-crystal display
12. Display resolution	voltage	1V	≥200V
		0.1V	≤199.9V
		0.01V	≤19.99V
	current	1A	≥200A
		0.1A	≤199.9A
		0.01A	≤19.99A
		0.001A	≤1.999A
13. Error of whole machine voltage and current meter	≤±0.5%±1 character (measuring range 5%~100% rated value)
14. Power supply load characteristics	Resistive load
15. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
16. Panels	The panel is operated by button settings; the front panel provides terminals for measuring the output voltage
17. Output functions	The output is automatically adjusted
18. Indicator lights	Power cord end warning light
19. Communications	With RS485 computer interface, users can monitor the working status of the power supply through the computer, online test, display chemical curve, display real-time data (voltage, current), control the power supply on/off, adjust the output voltage and current of the power supply, constant voltage timer function timing range 1-9999 seconds
20. Data preservation	The user can monitor the working state of the power supply through the computer, and can display the formation curve. The voltage and current curves and original data of the whole formation process can be saved and exported to Excel for viewing.
21. Requirements for power supply during chemical process	Follow the customer's workflow
22. Random accessories	Enterprise standard (two fuses, one copy of instruction manual, 3 meters serial port cable per unit, one RS485 to RS232 converter, one packing list, etc.)
