Capacitor Charge and Discharge Cycle Testing System

Product Introduction：

　　The XH-CFD01 Charge and Discharge Cycle System Tester is a power supply equipment specifically designed for capacitor manufacturers to conduct charge and discharge tests on capacitor products. It adopts an integrated design of power supply, oven, charge and discharge system, and dedicated testing software system, with high precision and stability, high output voltage and current display accuracy, and the ability to set charge and discharge time and cycle arbitrarily. It can work at full load for a long time and adapt to the harsh environment of capacitor manufacturers. This power supply can be used to supply power to containers, relays, resistors, and other electronic components for testing purposes. It can also be used for experimental testing of electronic components such as thermistors and motors. At present, many well-known capacitor manufacturers, resistor manufacturers and other electronic component production units, as well as research and development units such as scientific universities, use this series of power supplies and have received high praise.

Product Features Main technical indicators

1. High stability, low ripple, high voltage, output voltage range of 800V-50kV optional.

2. The system adopts an integrated design of power oven, which does not require wiring and can be used immediately after startup.

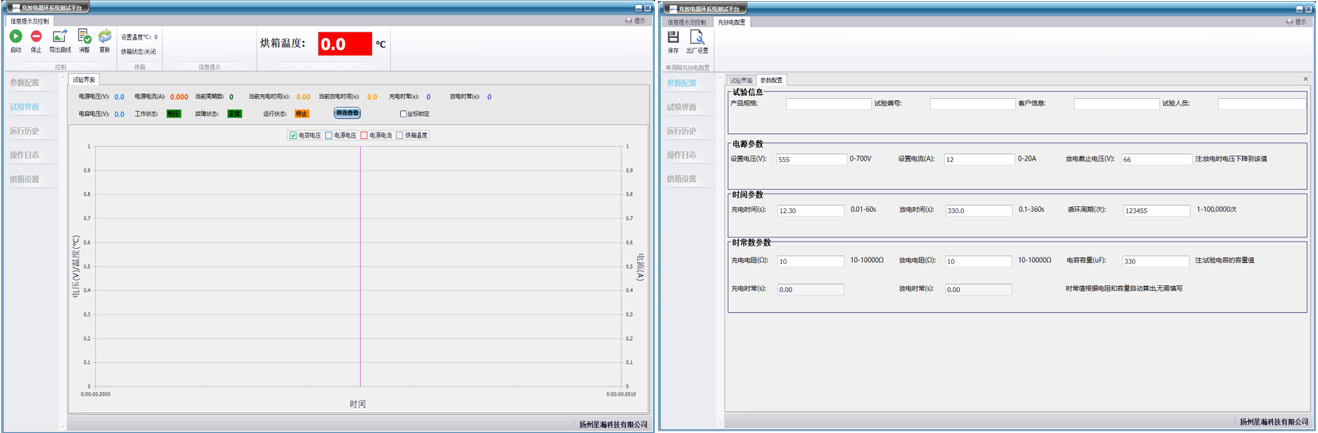

3. Industrial grade industrial control computer display and operation design, storing and recording various data of capacitor pulse cycles through software.

4. The charging and discharging time, cycle, etc. can be customized, and the charging and discharging resistance values automatically switch. It also has the function of external charging/discharging resistance.

5. Input physical protection cut-off (standby mode)/stop automatic delayed discharge/shutdown/power off rapid automatic discharge.

6. Having multiple communication network ports, it can achieve interconnection with third-party platforms.

7. Customized functions can be provided according to customer requirements.

8. CNAS certification report can be provided.

Intelligent voltage withstand testing system for capacitors (explosion-proof testing) Capacitor Aging Testing System Integrated Machine

BACK

Recommend

TV characteristic tester 01M/10M

TV Characteristics Intelligent Tester

High precision linear DC power supply

High precision switch DC power supply

High power thyristor rectifier power supply

High voltage DC power supply

Capacitor aging power supply

Aluminum foil capacitor power supply

Capacitor pulse DC power supply (surge)

AC stabilized voltage and current power supply

Capacitor Ripple Durability Test Power Supply

Ripple Durability Test Power Supply for Thin Film Capacitors

Multi channel intelligent ripple durability testing power supply

Intelligent Ripple Power Supply Testing System (Integrated Machine)

Intelligent voltage withstand testing system for capacitors (explosion-proof testing)

Capacitor Charge and Discharge Cycle Testing System

Capacitor Aging Testing System Integrated Machine

Bidirectional DC power supply

Product main technical indicators
1. Input and output	Input: AC single phase 220V/380V ±10% 50Hz±10% (according to product specifications) Output: DC voltage and current stabilized Output maximum voltage current value: DC200V20A
2. Voltage stabilization accuracy	Source effect: less than 0.2% of the rated value (the rate of change of output voltage caused only by a 10% change in the input source voltage) Time drift: ≤ 0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.5‰ / ℃± 2 characters (within half an hour) (only due to the output voltage change rate caused by environmental temperature changes within the power supply operating temperature range) Load effect: ≤0.3% rated value ±2 words (only the rate of change of output voltage caused by the change of output current from zero to rated value)
3. Steady flow accuracy	Source effect: less than 0.2% of the rated value (the rate of change of output voltage caused only by a change of ±10% in the input source voltage) Time drift: ≤ 0.3% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours) Warm drift: ≤ 0.5‰ / ℃± 2 characters (within half an hour) (only due to the output voltage change rate caused by environmental temperature changes within the power supply operating temperature range) Load effect: ≤0.3% rated value ±2 words (only the rate of change of output current caused by the change of output voltage from zero to rated value)
4. Ripple (r.m.s)	No more than 0.5% of the rated value +10mV (measured at 80%~100% rated output)
5. Efficiency	≥80%
6. Output voltage adjustment range	Approximately 0 to the rated voltage value can be continuously adjusted
7. Output current adjustment range	Approximately 0 to the rated current value can be continuously adjusted
8. Output voltage and current setting	Touch screen or 10 circle potentiometer is optional
9. Protection modalities	Overvoltage, overcurrent, overheating automatic protection
10. Short circuit protection	short-circuit protection
11. Working methods	Long-term continuous operation at full load
12. Output voltage and current display mode	Touch screen display (or LED display optional)
13. Display resolution	voltage	1V	≥1000V
		0.1V	≤999.9V
	current	1A	≥1000A
		0.1A	≤999.9A
		0.01A	≤99.99A
14. Start-up shock	Rated voltage ≤2%
15. Transient response time	≤20ms
16. Error of whole machine voltage and current meter	≤±1%± 1 character (measuring range 5%~50% of rated value) ≤±0.5%± 1 character (measuring range 50% ~100% rated value)
17. Power supply load characteristics	Resistive load
18. Environmental conditions	Where to use: only indoors Temperature: -20℃ ~ 40℃ Air humidity: ≤80%
19. Random accessories	Enterprise standard (fuse set, instruction manual, packing list)
20. Functioning	Charge and discharge time and cycle can be set
21. Optional functions	1. Charge/discharge protection resistor: can be fixed or adjustable; 2. It has the function of external charging and discharge resistance; 3. RS485 communication interface is available to realize interconnection with third-party platforms.
